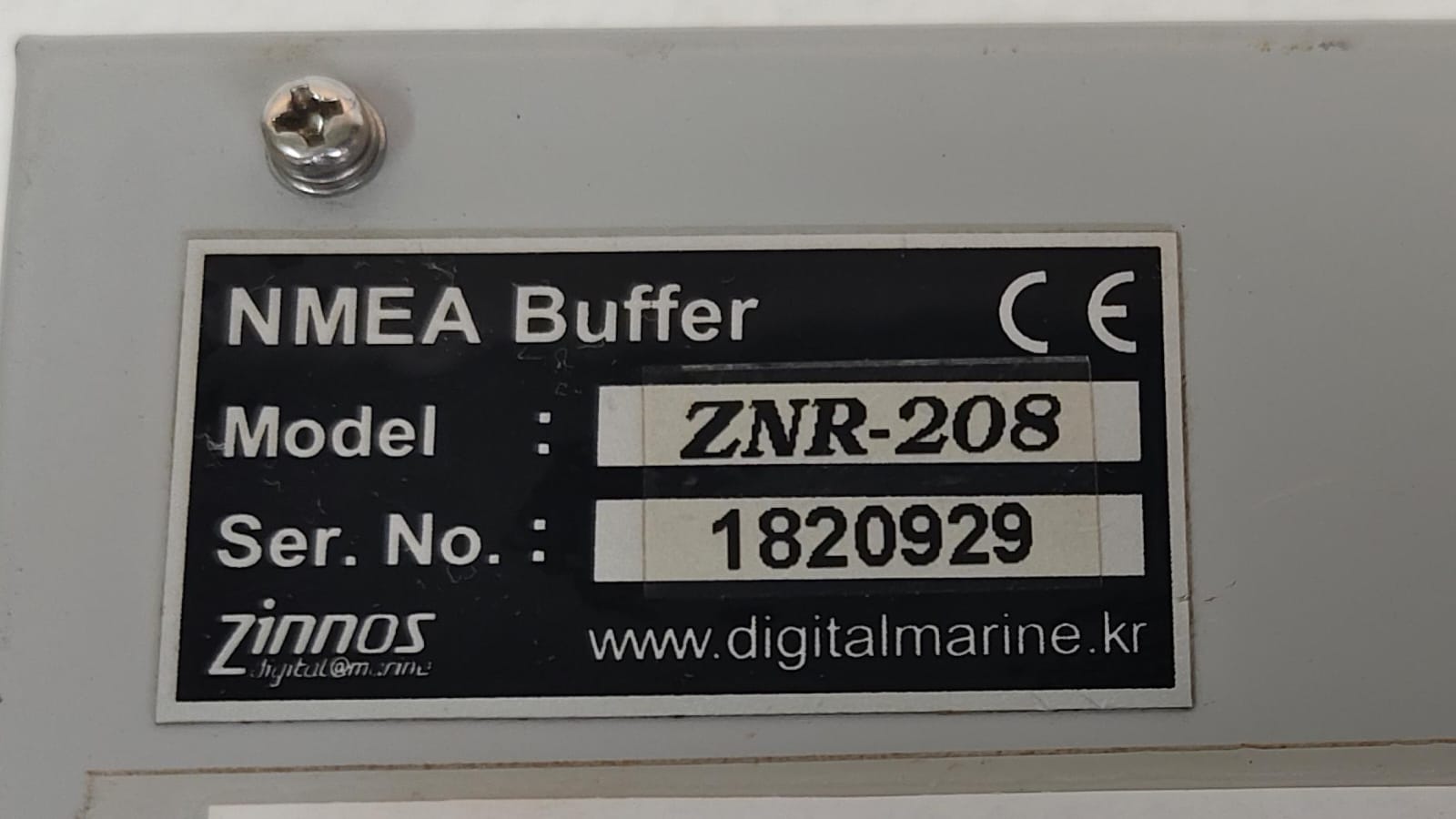

Zinnos Nmea Buffer NZR-208
Zinnos Nmea Buffer NZR-208 - Image 2
Zinnos Nmea Buffer NZR-208 - Image 3
Zinnos Nmea Buffer NZR-208 - Image 4

$203.00

Availability: In Stock

Standard
– Compliance with NMEA 0183 and IEC61162-1 Standard
– Compliance with EIA RS422 (ITU-X.27/V.11)
– Compliance with EIA RS232 Standard
NMEA Input
– 2 NMEA Inputs
– Support all RS422 (NMEA 0183), RS232, Current Loop and 5V TTL
– Automatically or Manually switched between Input A and B
– Primary Input Port is able to be specified
– Up to 115,200bps
DIP SW (Left Side)
– SW 1 : Select primary(default) Input port (A or B)
– SW 2 : Select change mode (Automatic or Manual change)
– Auto Baud Rate Detection
NMEA Output
– 8 Independent RS422 (NMEA 0183) Ports
– 2 Output Ports (Port 7 and 8) are able to be configured independently for both
RS422 and RS232 by each jumper
– Supports Up to 115,200bps

Categories: , Tag:

Description

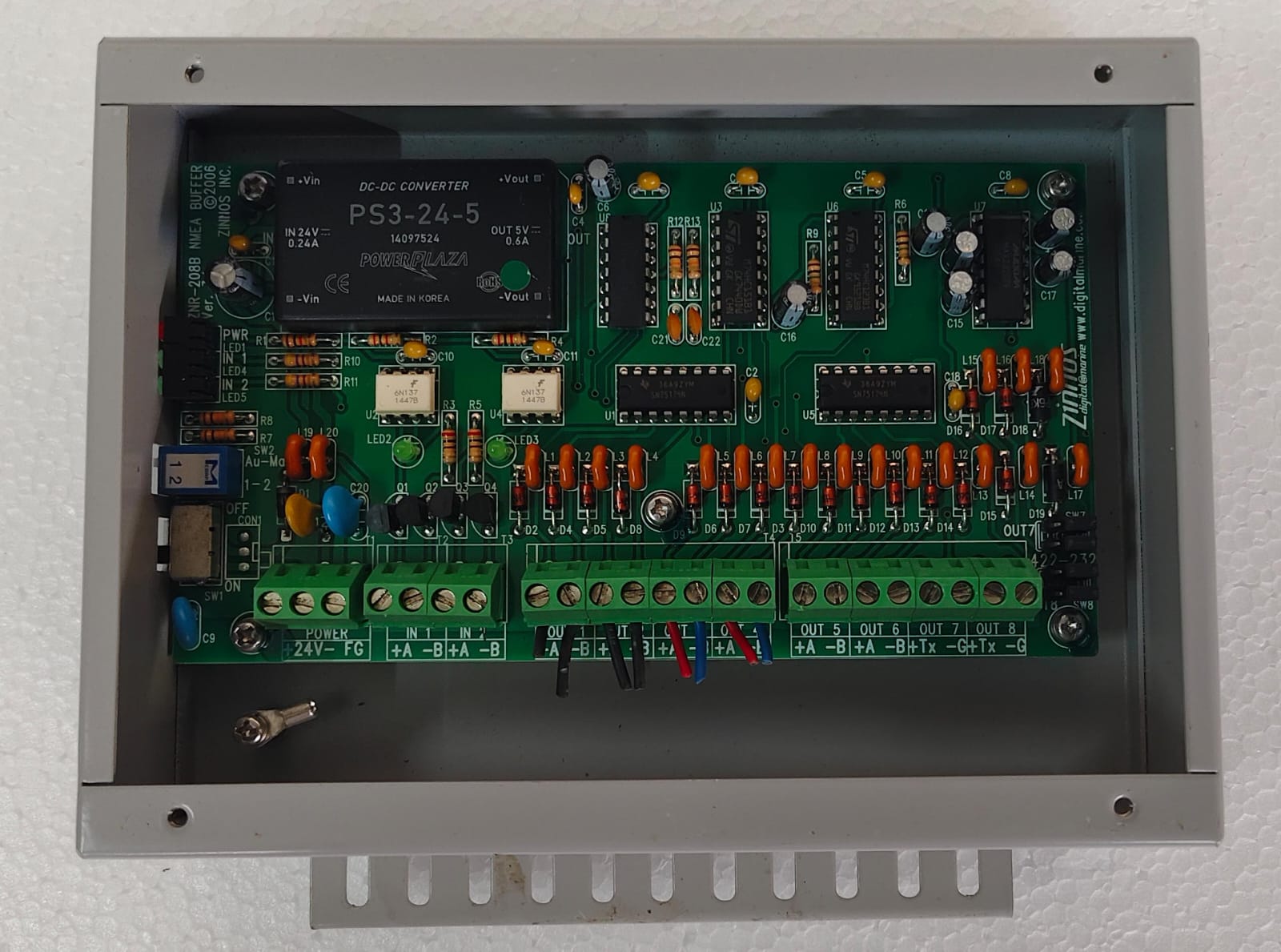

ZNR-208 8ch NMEA Buffer is a high reliable serial data distributor for
relaying NMEA 0183 data to 8 listeners. It receives 2 NMEA signals and
splits one of them into 8 NMEA output ports.
It is very useful for safety navigation with protecting system faults. If one
GPS input signal is lost then ZNR-208 selects another GPS input signal
automatically (or manually), and it maintains to output without any system errors.
ZNR-208 is able to receives any type of serial data such RS422, RS232, 5V TTL signal. Also, it has both high
voltage protection and reverse input protection too. 2 output ports of 8 outputs are able to be selected RS422 or
RS232 type. This NMEA Buffer provides full DC isolation between input signal, output signal and input power
each other.
NMEA Buffer is also cal
