Description

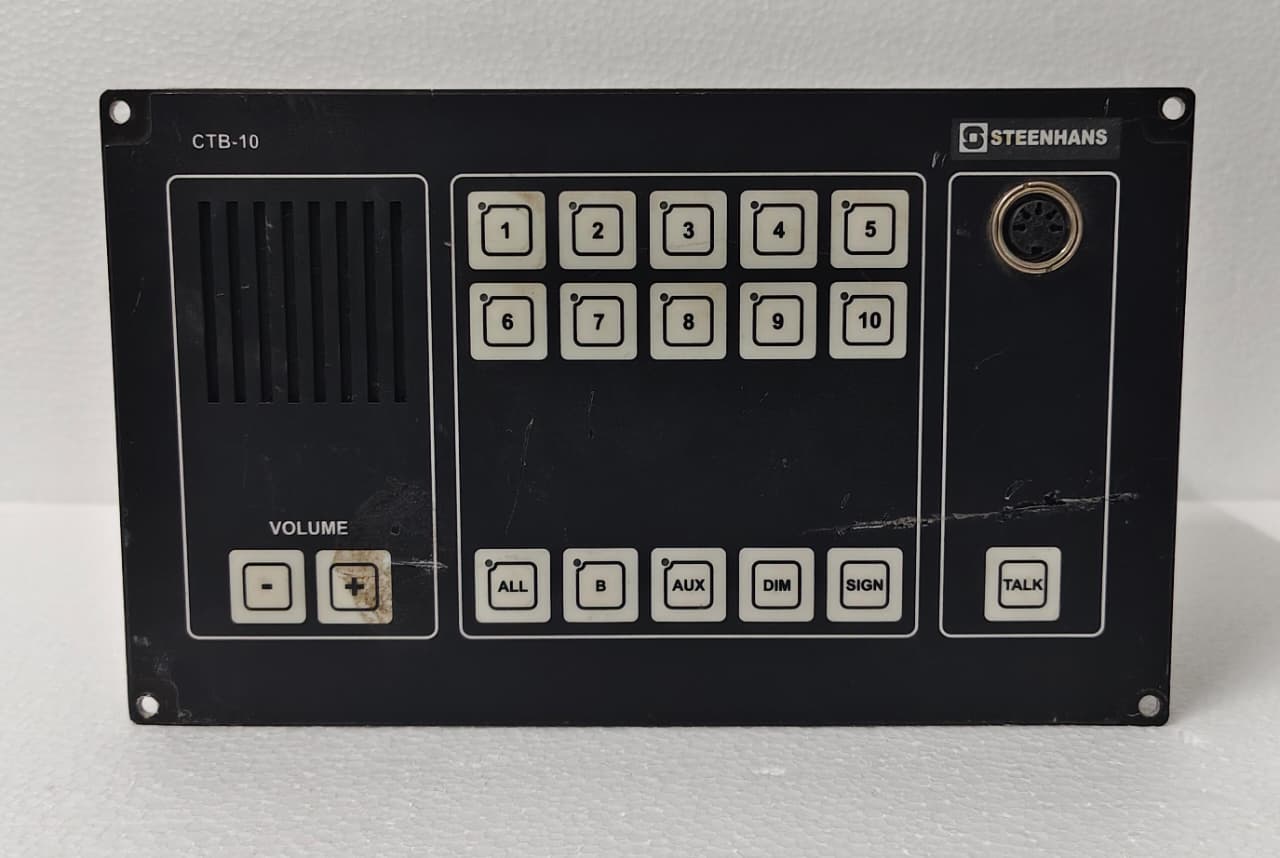

VINGTRON STENTOPHON CTB-10 TALK-BACK SYSTEM (STEENHANS)
SPECIFICATIONS
Material / finish Aluminium / black
Mounting Flush with 4 x 4mm screws, Optional Back box for bulkhead
mounting
Terminals Plugable screw terminals for cable max. 2,5mm2

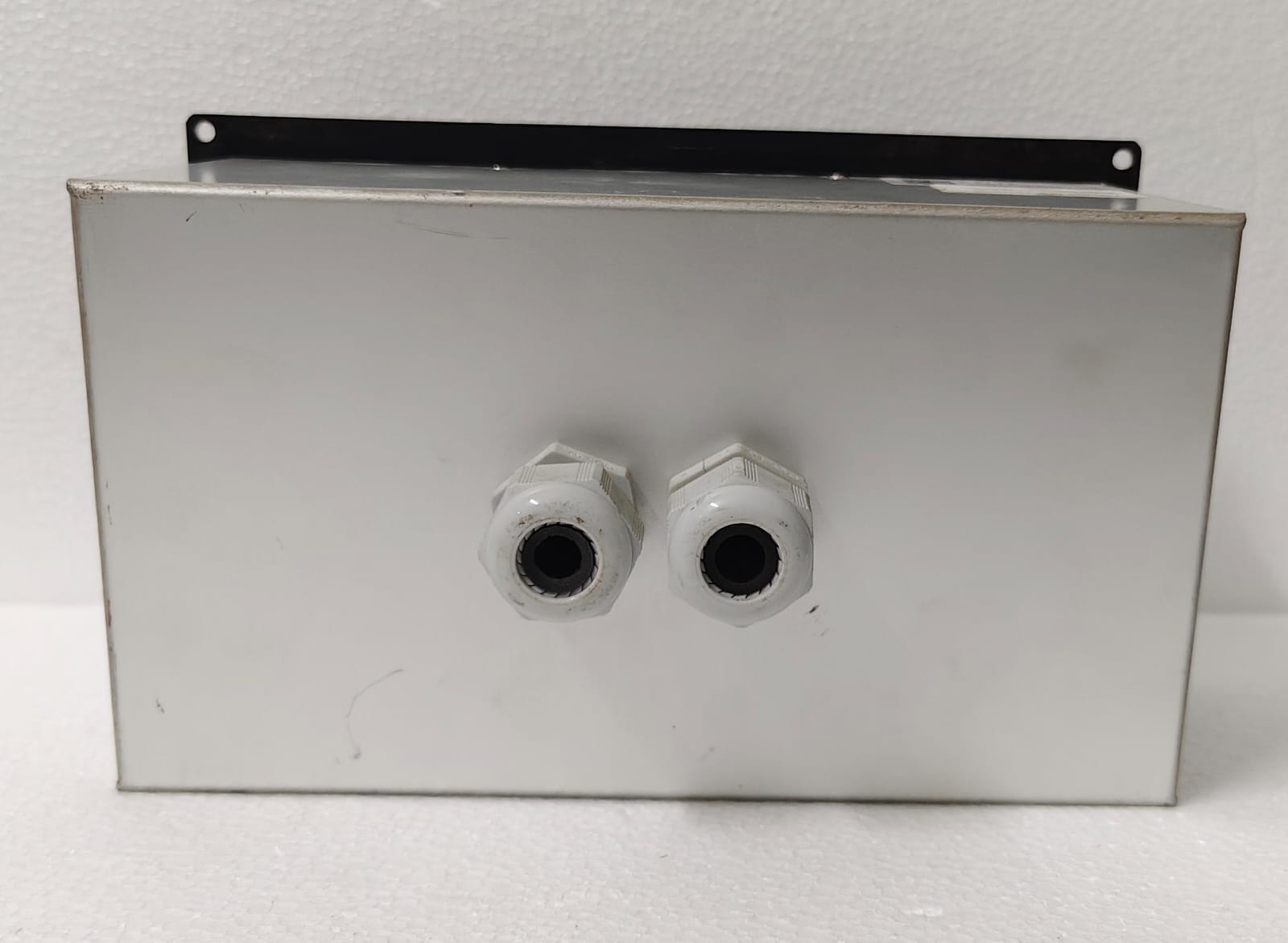

Cable gland 2 x PG-16
Dimension (mm) 240W x 144H x 100D
Cut out dimension 224 x 132
Weight Approx. 1.2 kg
Microphone input Socket for handheld and electret gooseneck microphone
External connections Central unit, ext. microphones, ext.loudspeaker
Front panel Graphic front film
Switches Push button type with LED indication
Loudspeaker 3 W / 8 ohm
IP rating IP-22
