NSR NGR-5000 GPS MARINE Multi-System GNSS NAVIGATOR

Description

 GNSS RECEIVER
 Receiving System: BDS, GPS, GLONASS
(standalone or combined)
 Position Accuracy: Approx. 2.5m, 95% of the time,
horizontal dilution of position (HDOP) ≤ 4
 Tracking Velocity: 999 kts
 Position-fixing Time: Warm start: 30 seconds
Cold start: 45 seconds
 Position Update Interval: 1 second
 DISPLAY SECTION

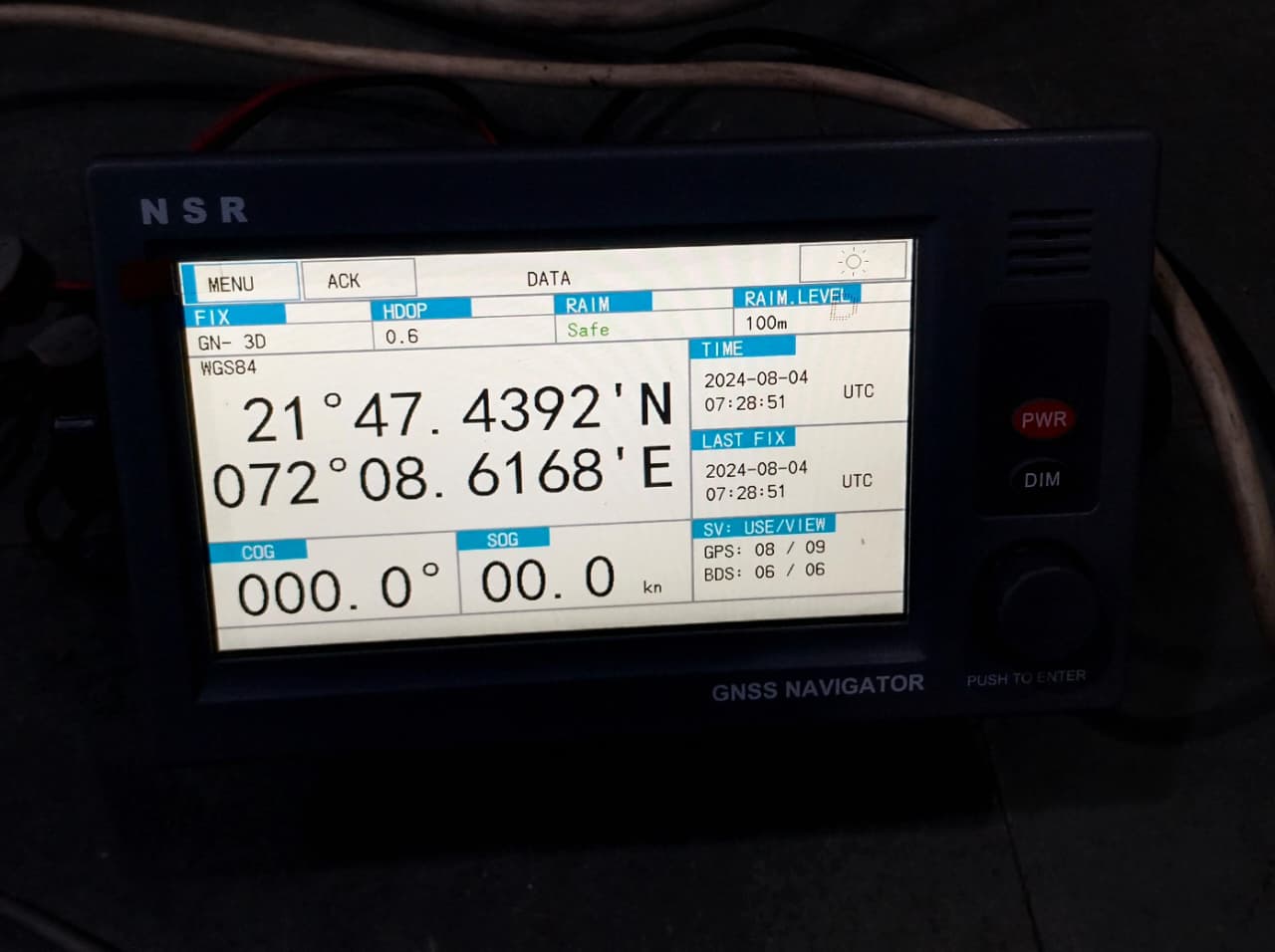

 Display: 7 inch, color LCD, touch screen operation
 Fix Mode : BDS, GPS, GLONASS,
BDS+GPS, GPS+GLONASS
 Alerts: Lost of Position, HDOP﹥4, DGNSS lost

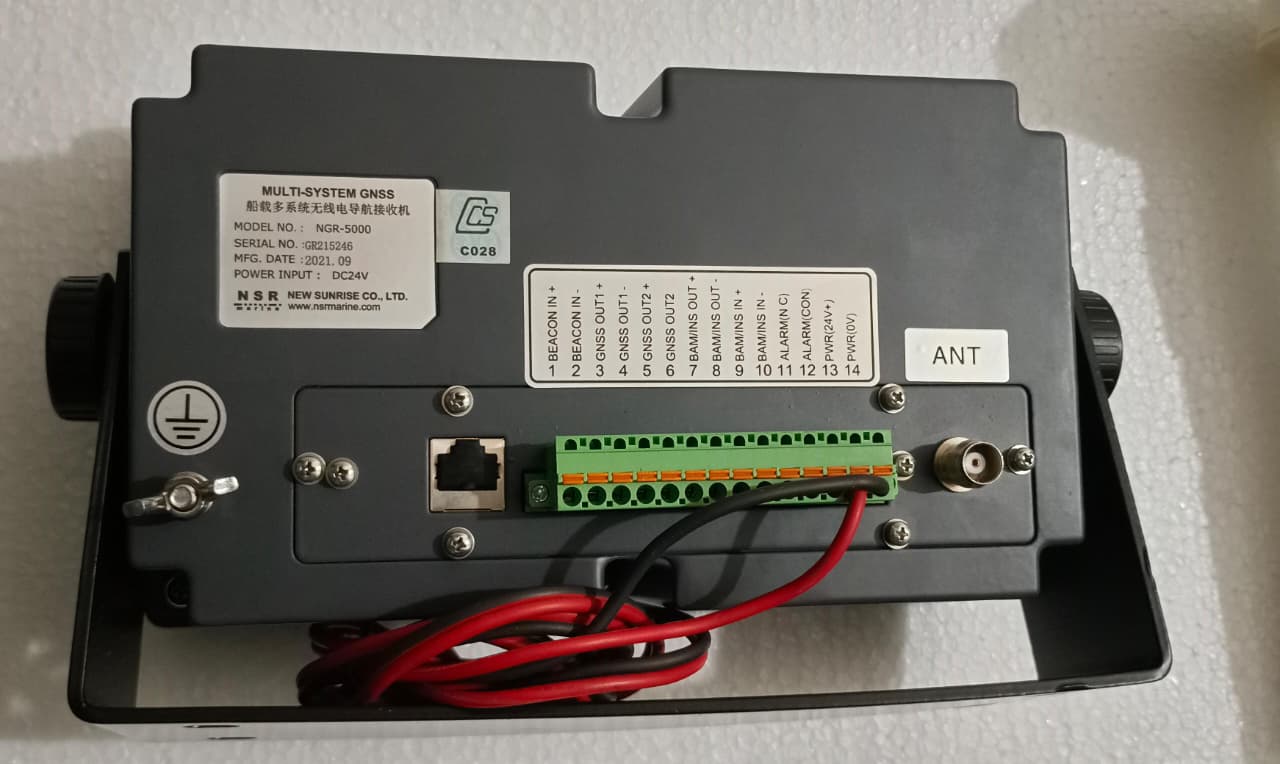

 INPUT/OUTPUT DATA
 Output Data: RS422, totally 2 ports,
Baud Rate 4800/9600/19200 bps
 Sentences: All those from BDS, GPS, GLONASS
 INS connection: INS IN/INS OUT, RS422
 Input Data: DGNSS RTCM 10402.4
 POWER SUPPLY: 12-24 VDC, 0.25-0.50 A
 ENVIRONMENT CONDITION

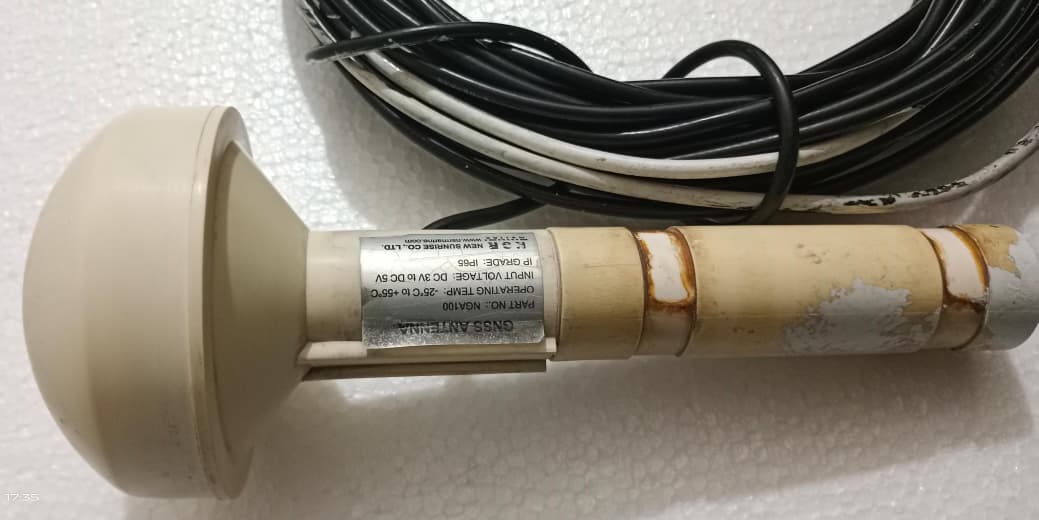

 Ambient Temperature: Antenna Unit: -25°C to +70°C
Main Unit: -15°C to +55°C
 Relative Humidity: 95% at 40°C
 IP Grade: Antenna Unit: IP66
Main Unit: IP22
OTHERS
 Size: 145(H) x 264(W) x 83(D) mm
 Weight: abt 2 kg (main unit)
