LINGLU ECHO SOUNDER DS-2018

Category: Tag:

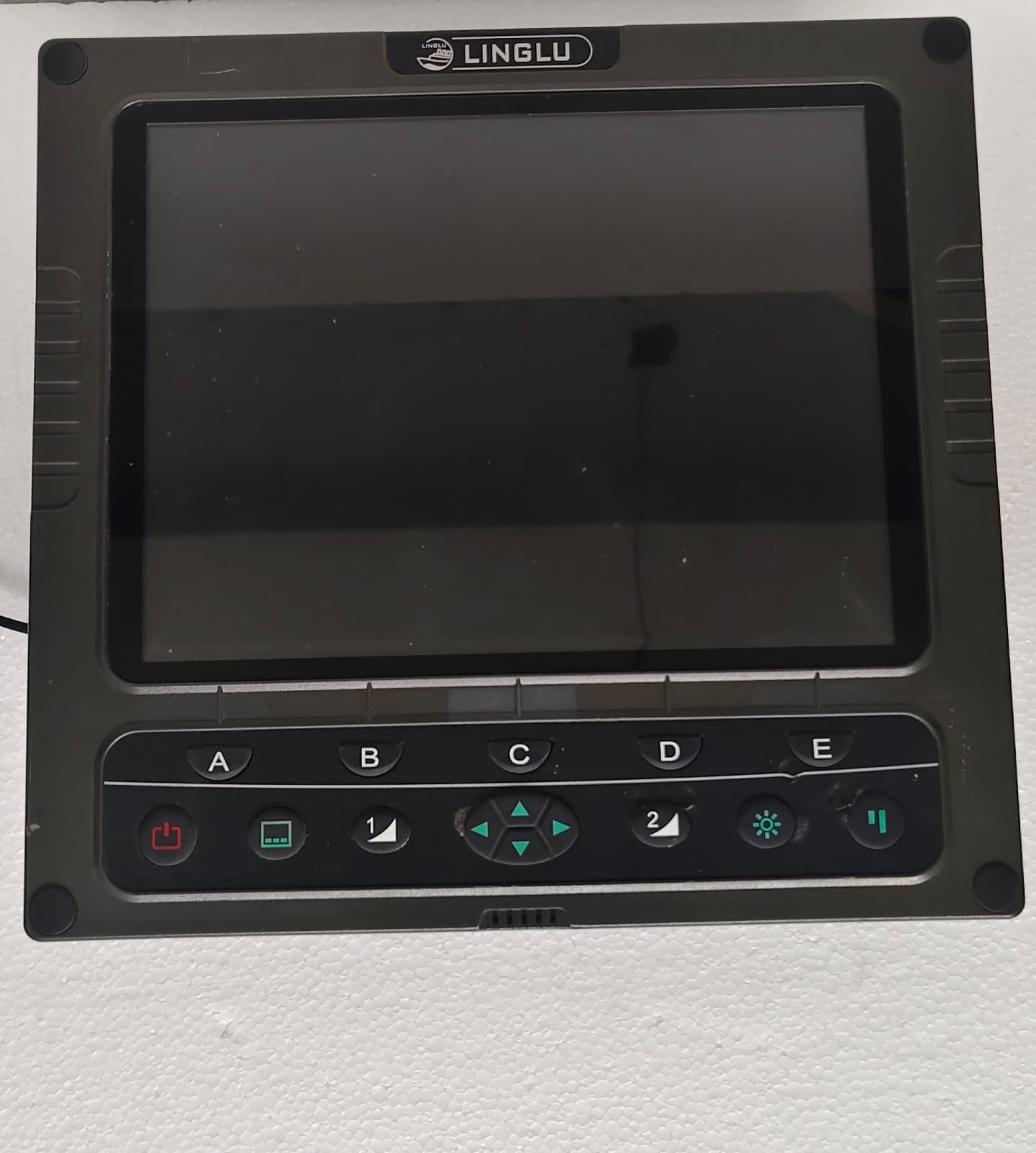

LINGLU ECHO SOUNDER DS-2018

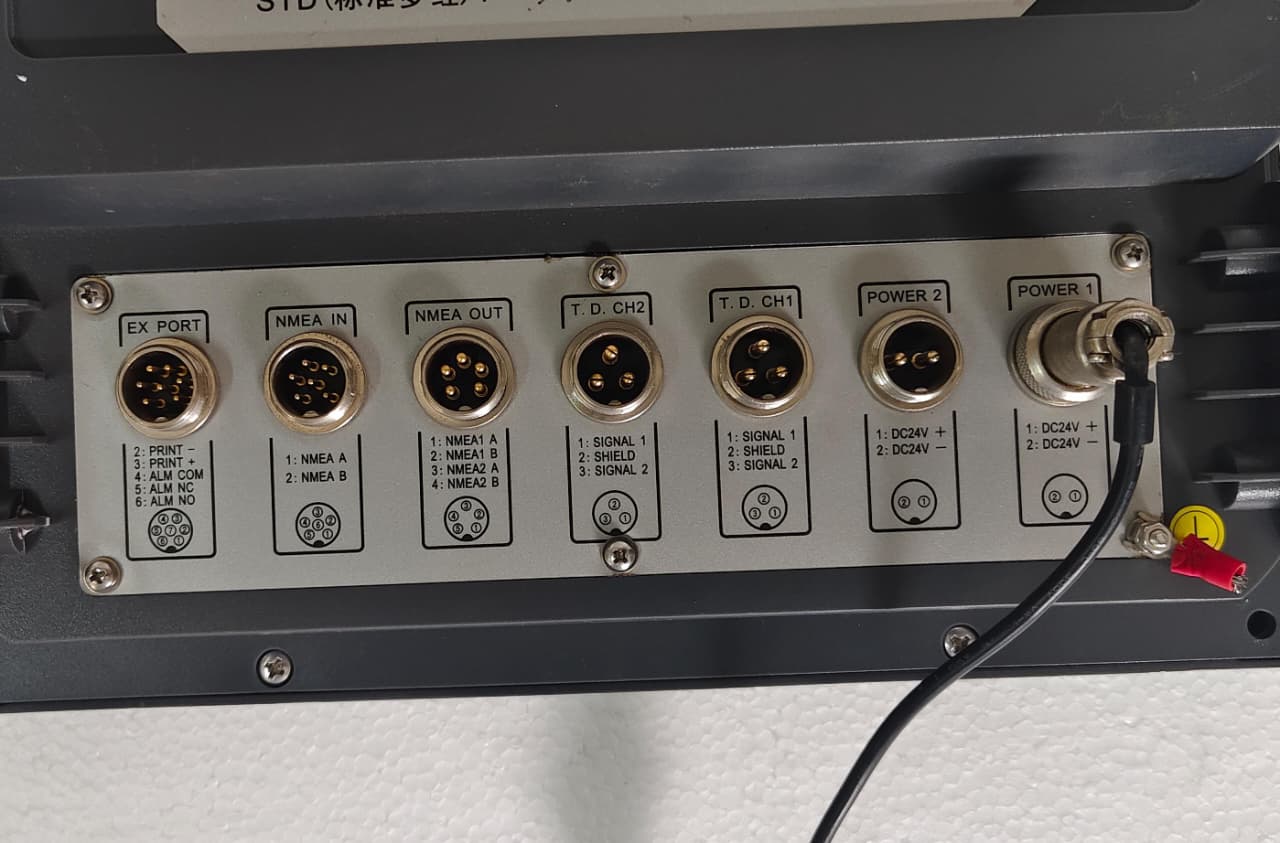

LINGLU ECHO SOUNDER DS-2018 - Image 2

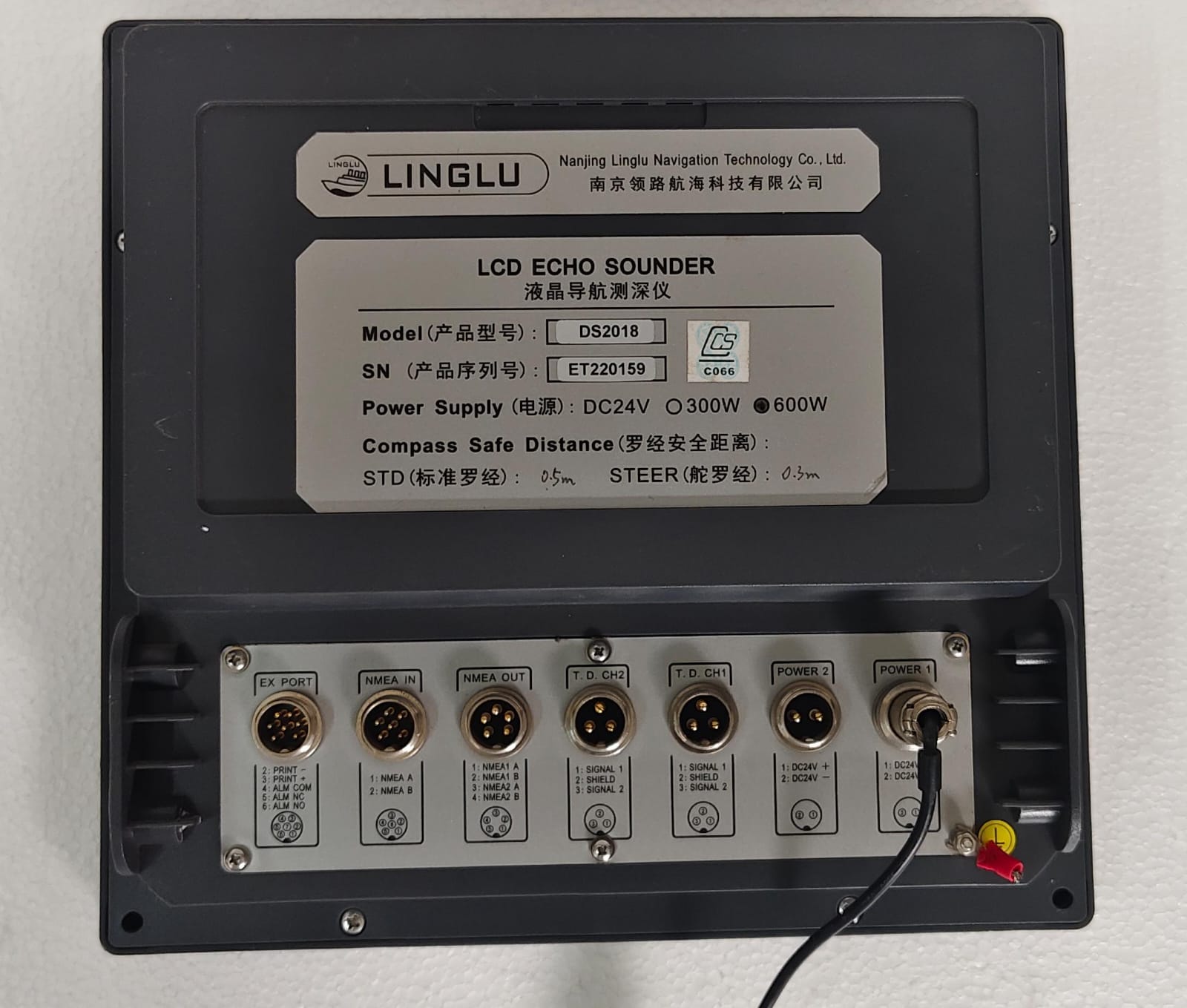

LINGLU ECHO SOUNDER DS-2018 - Image 3

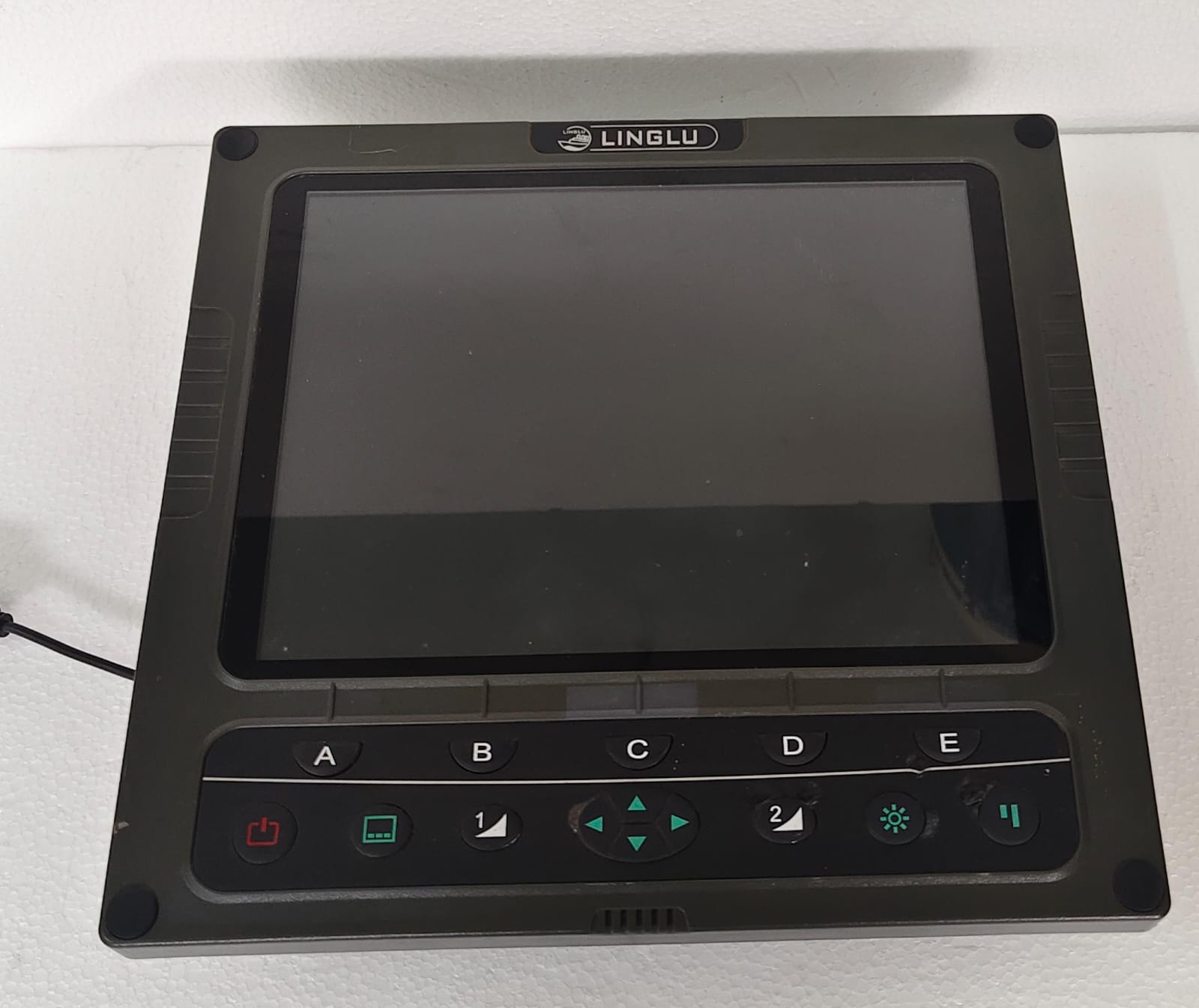

LINGLU ECHO SOUNDER DS-2018 - Image 4

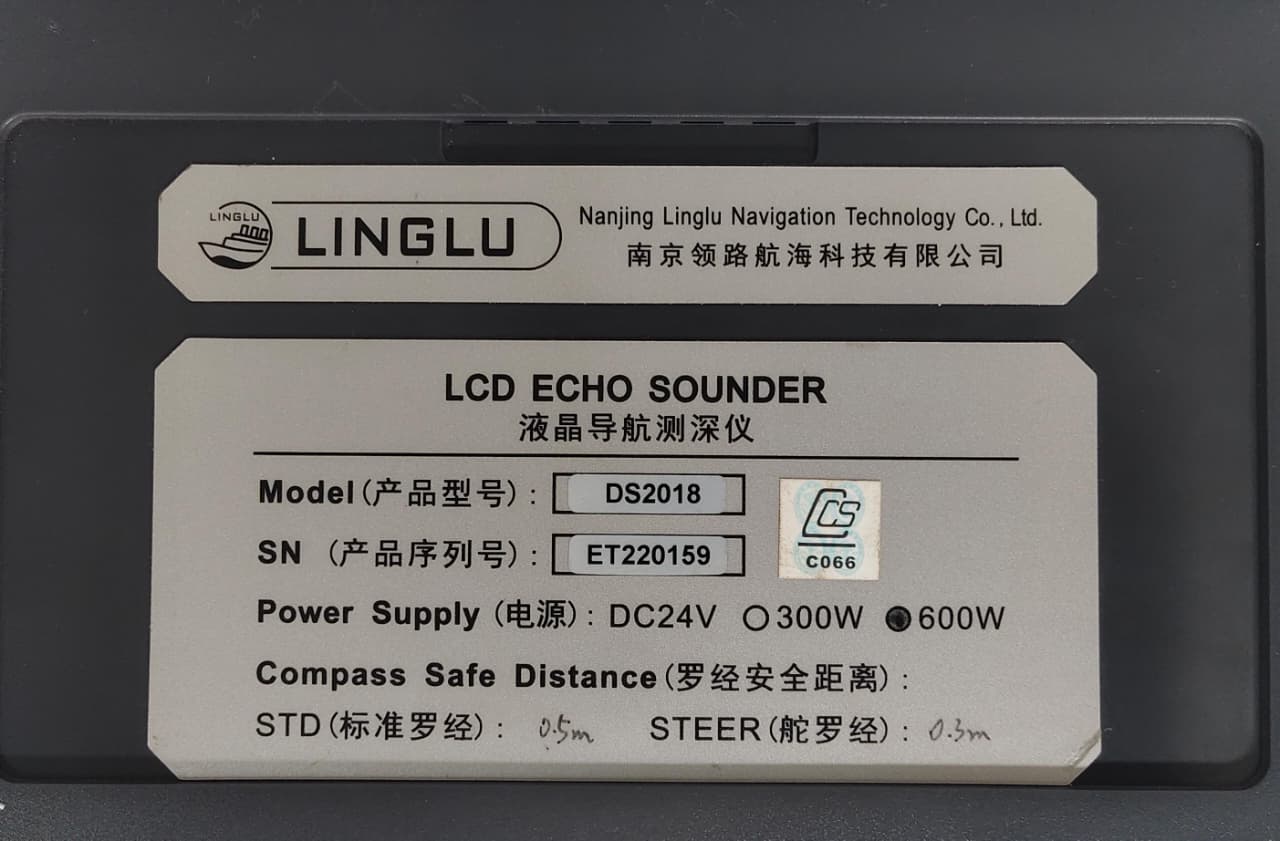

LINGLU ECHO SOUNDER DS-2018 - Image 5

Availability: In Stock

LINGLU ECHO SOUNDER DS-2018

Category Characteristic Parameter
Main Features Device Type Ultrasonic Marine echo sounder
Measurement channels 2
Frequencies 200 kHz and 200 kHz
Output power 400 W
Measurement accuracy ≤ ±0.1 m or ±1% of the range
Permission 0.1 m
Minimum depth 0.3 m
Maximum measuring range 800 m
Operating speed of the vessel from 0 to 30 nodes
Screen Size 10.4 inches
Screen Resolution 800×600 pixels
Signal strength 7 levels
Data storage up to 24 hours
I/O port Compatible with the NMEA0183 protocol
Printer Port Compatible with RS-232 protocol
Electrical characteristics Basic nutrition AC220V (±10%) / 50Hz (±10%)
Additional meals DC24V (-25% ~ +30%)
Power consumption <15 Ð’Ñ‚
Dimensions and weight Overall dimensions 279×278×69 mm
Weight 2 kg
Degree of protection IP display protection IP23
IP protection of the sensor IP68
Temperature and operating conditions Safety distance from compass >50 cm
Operating temperature -15°C to +55°C
Operating humidity 10% to 90% RH
Category: Tag:
Brand:LINGLU

Description

LINGLU ECHO SOUNDER DS-2018

  • ISO 9875: 2001-Ship echolocation equipment and marine technology
  • IEC 60945: 2002 – Requirements for marine navigation and radio communication equipment
  • IEC 61162-Digital interfaces for marine equipment
  • IMO MSC. 74 (69) Annex 4-Performance Standards for Echo Sounders
  • IMO Resolution A. 694 (17) – Radio Equipment Requirements for the Global Maritime Safety System (GMDSS)
  • Chinese Ship Classification — Guidelines for Testing and Classifying electrical and Electronic devices for Marine vessels.

The LINGLU DS2018 echo sounder is ideally suited for use on ships, providing high accuracy and reliability in depth measurements and other parameters.
